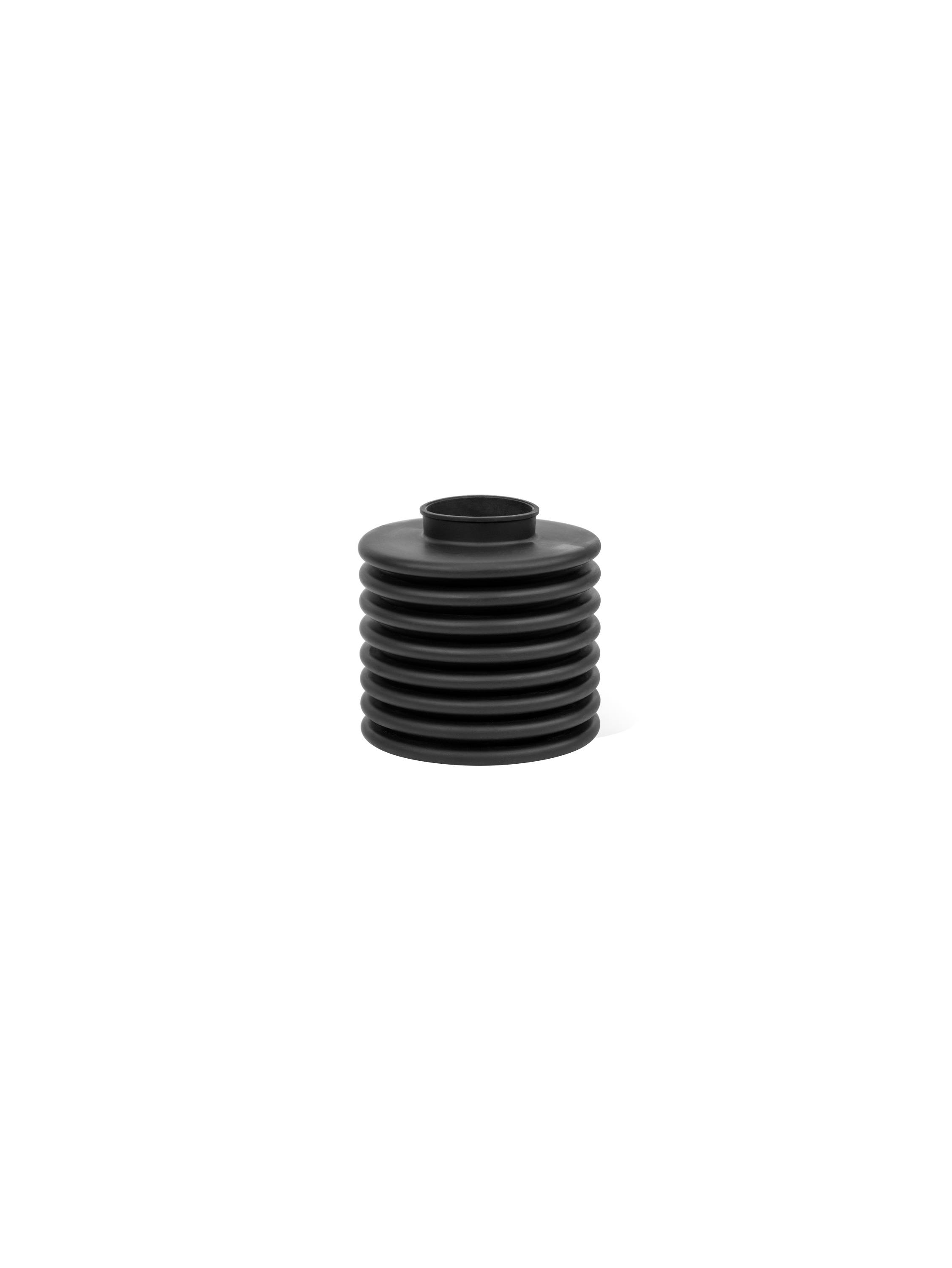

This tire boot replacement will fit all of our universal tire swivels. A127 – A130 – A131 – A132 – A133 – A134  This product should last 2 years in harsh conditions and up to 5 years in optimal conditions. Some conditions may require replacement sooner.

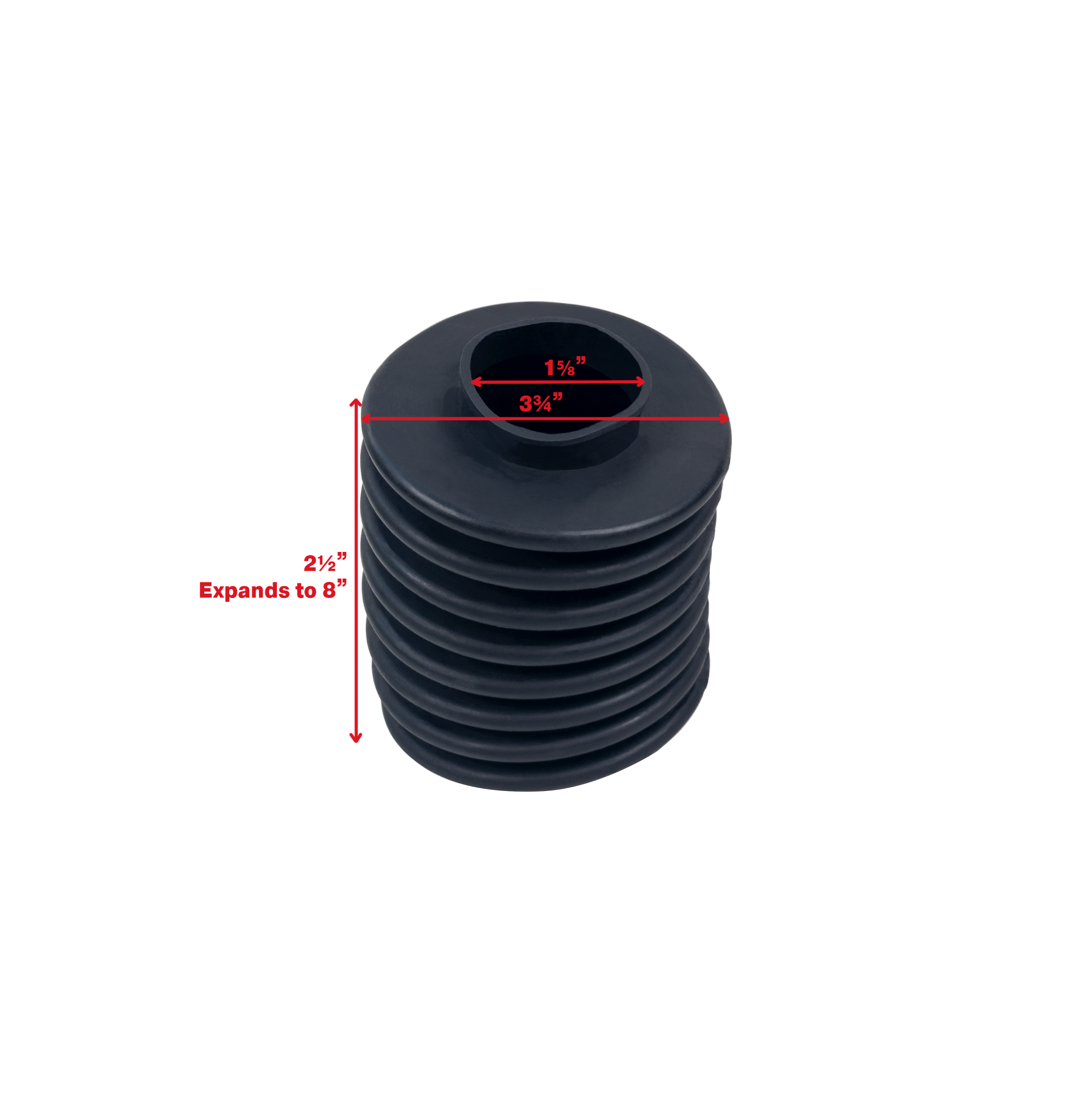

Its dimensions are: 5 ¼ Long – 3 ¾ Outside dia. – 1 ¾ Inside dia. and 13” Circumference.

This is for children 2 – 12 years old only. Adults should supervise children at all times. Do not allow children to use unsafely. Do not allow it to be used if damaged.

Testing Information

A135 Lead and Phthalates 8-16-19

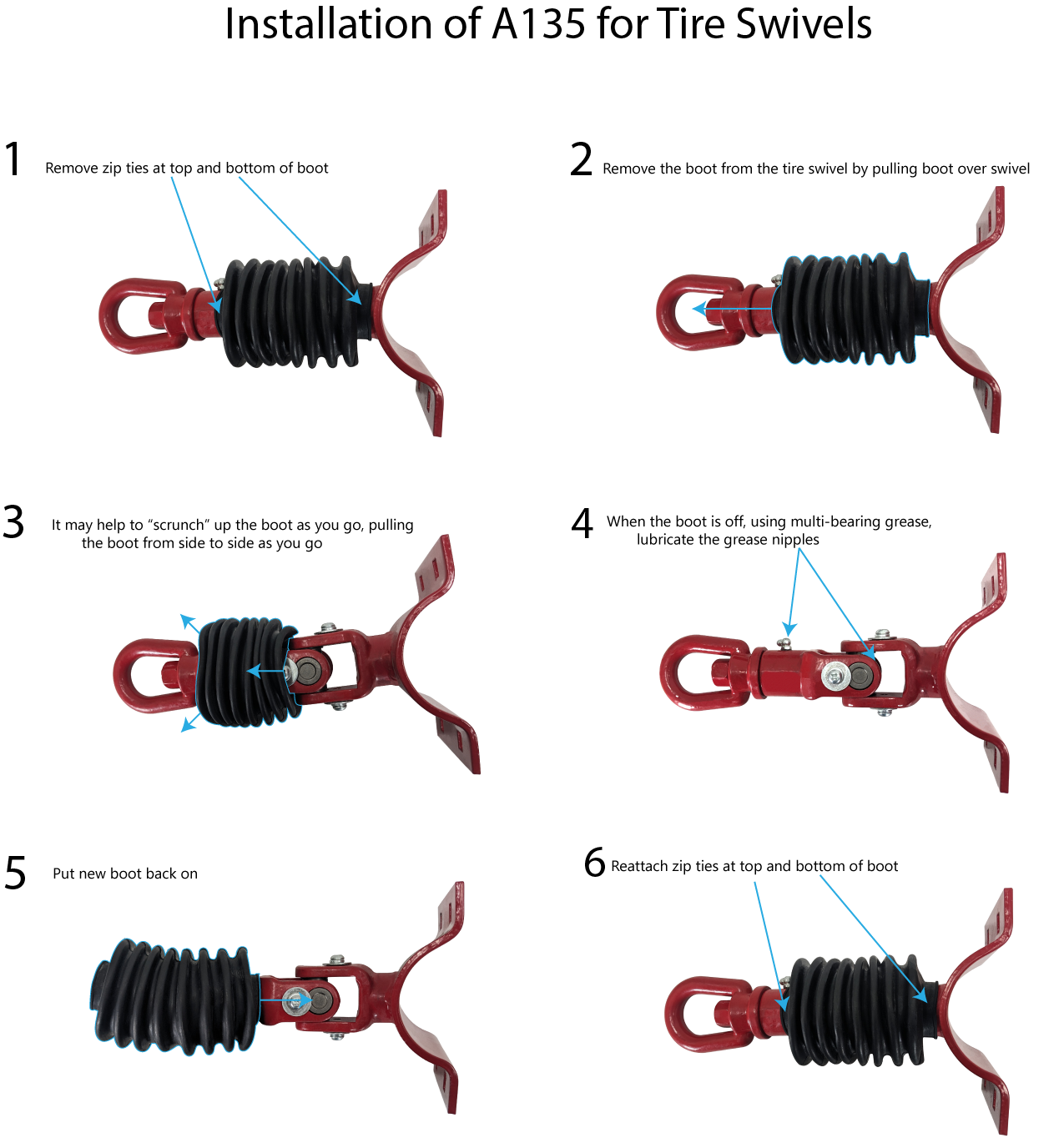

An image showing how to install an A135

IMPORTANT: Please read for important information. In this material we have tried to provide some requirements stated in the CPSC Handbooks, ASTM F2373-11, F1487-11 and F1148-09. However, we in no way intend for this to be a complete list of requirements. Also these publications are updated frequently with changes therefore, you should read these publications yourself to determine if any part or installation could prove a danger to a child.

To help keep children safe from harm, review installation and maintenance instructions before installing equipment. These are located in the description of every product on our website.   Download and print these instructions and keep in a safe place. Our website also has a “Product Testing Information” page. All products are tested for lead, phthalates and tensile strength. You can also call us at 1-800-227-7529 for more information or see

Installation: Our parts are sold as either replacement parts or components of a set, unless you are buying our Metal Frame Set, therefore these parts need to be installed according to the sets installation instructions. If the installation instructions differ from ours please contact us at 800-227-7529.

Take two flat head screw drivers and spread top of boot so that it can be wiggled over tire swivel mechanism. To hold boot in place, secure with zip tie at top and bottom of boot. Cut off excess plastic tail on zip tie.

Maintenance: Do the following to reduce the chance of serious injuries. At beginning and end of each play season and once a month during play season, check for tears in rubber boot. Replace parts necessary for safe use. Maintain detailed inspection and maintenance records for public-use playground equipment.

Any damage from vandalism, abuse or misuse VOIDS all warranties.

Weight (lbs) 0.35
Dimensions (in) 10 × 8 × 5 in
