This design is safer for children’s fingers! This is a 12” diameter and a solid bowl shaped steering wheel and adds greater safety than the spoke type steering wheels. You will need a 5/8” carriage bolt to attach to frame, bolt not included. This product should last 2 years in harsh conditions and up to 5 years in optimal conditions. Some conditions may require replacement sooner.

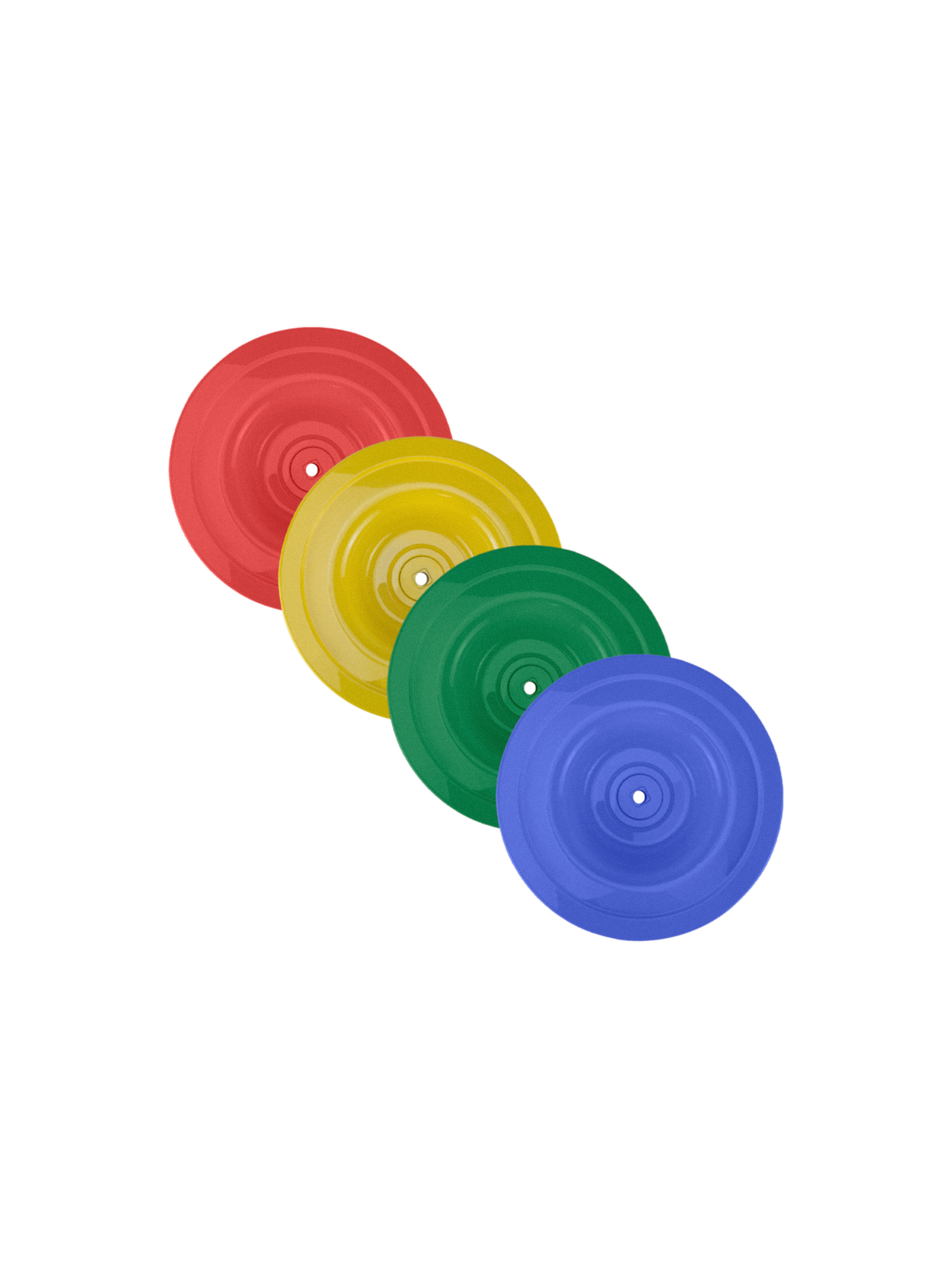

Colors: Blue, Red. Yellow, Green
This is for children 2 – 12 years old only. Adults should supervise children at all times. Do not allow children to use unsafely. Do not allow it to be used if damaged.
IMPORTANT: Please read for important information. In this material we have tried to provide some requirements stated in the CPSC Handbooks, ASTM F2373-11, F1487-11 and F1148-09. However, we in no way intend for this to be a complete list of requirements. Also these publications are updated frequently with changes therefore, you should read these publications yourself to determine if any part or installation could prove a danger to a child.
To help keep children safe from harm, review installation and maintenance instructions before installing equipment. These are located in the description of every product on our website. www.jensenswing.com Download and print these instructions and keep in a safe place. Our website also has a “Product Testing Information” page. All products are tested for lead, phthalates and tensile strength. You can also call us at 1-800-227-7529 for more information or see http://www.cpsc.gov/cpscpub/pubs/325.pdf.
Installation: Our parts are sold as either replacement parts or components of a set, unless you are buying our Metal Frame Set, therefore these parts need to be installed according to the sets installation instructions. If the installation instructions differ from ours please contact us at 800-227-7529.
Needed a 5/8” carriage bolt (the appropriate length to go through your wood or pipe, so that there are not more than 2 threads showing past the nut) a 5/8” nylock nut and 2 washers. Make sure washers are not smaller in diameter than nut, to prevent entanglement. See Figure A1.15. Make sure wood or pipe is strong enough to support weight of wheel and spinning motion. Drill 5/8” hole through wood or pipe. Place washer next to wood, then place bottom half of steering wheel hub next to washer, then steering wheel, then top half of hub with round hole. Put carriage bolt through top of steering wheel. Place second washer on the backside of the wood then the nylock nut. Tighten nylock nut so that it is secure and not more than two threads are protruding past the nut. Make sure that the steering wheel can spin freely.
Maintenance: At the beginning and end of each play season and once a month during the play season, check that the steering wheel can spin freely. Check for vandalism, sharp edges, rust or splintered wood. Make sure nut is secure. Replace parts as necessary. Maintain detailed inspection and maintenance records for public-use playground equipment.
Any damage from vandalism, abuse or misuse VOIDS all warranties.
| Weight (lbs) | 6 |
|---|---|
| Dimensions (in) | 14 × 12 × 4 in |
