Description
This set is very heavy duty. Each bay is designed for two children up to 12 years old, per ASTM and CPSC guidelines. If installed according to installation instructions, our sets will more than meet these requirements.
Actual weight limits depend upon how the set is installed, the amount of concrete, the type of dirt in which the set is installed, how much use, etc. Therefore, we do not state weight limits for our swing sets.

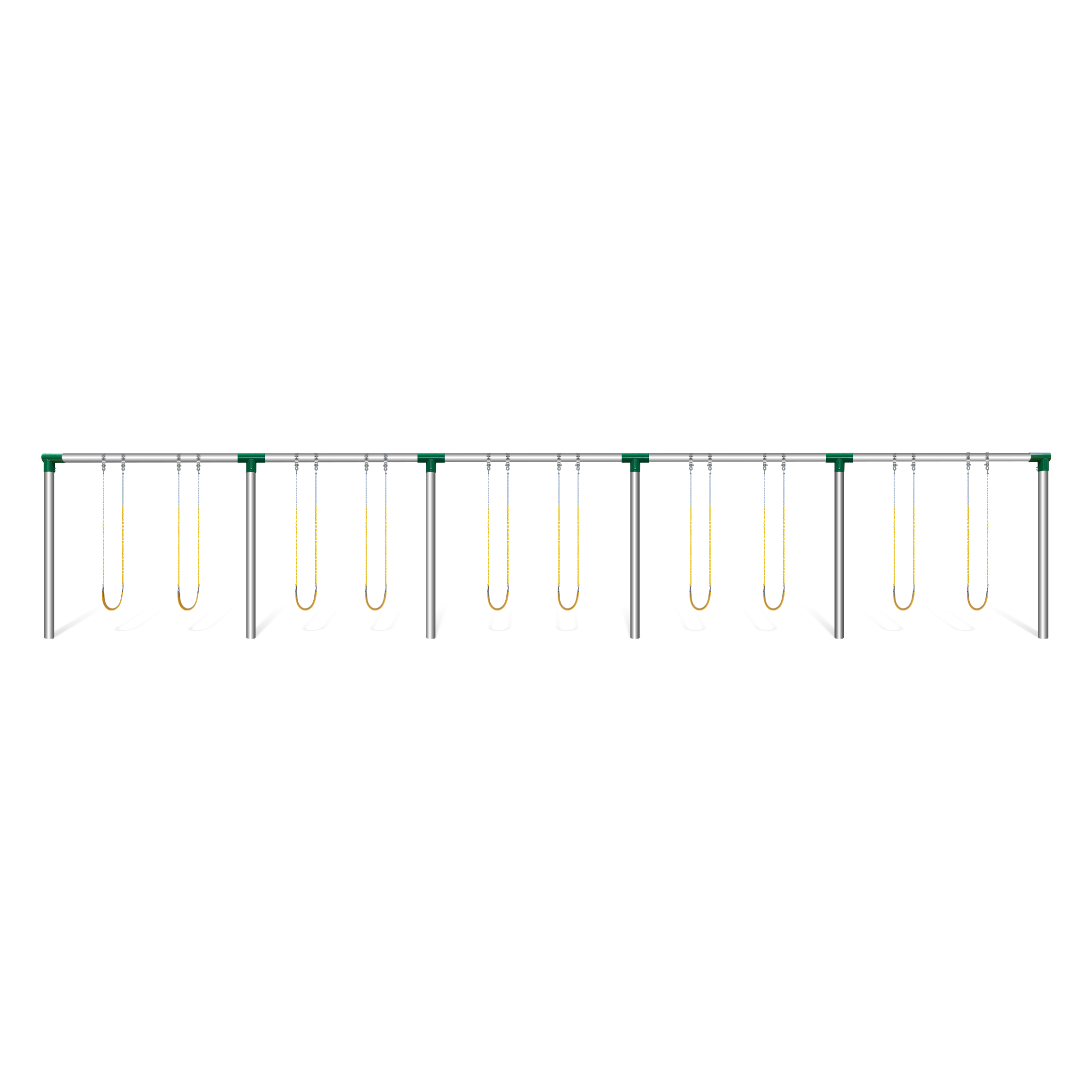

This frame is for an in ground 8’ high set with 10 Commercial Swing Seats. You will need to specify colors for the Chains and Swing Seats. This product should last 2 years in harsh conditions and up to 5 years in optimal conditions. Some conditions may require replacement sooner.
TOOLS AND PARTS NEEDED:
Ladder, ¾” wrench, Ratchet socket wrench, Tape measure, H175 supplied Allen wrench for shackles, and 6mm Allen wrench for set screws. Stakes for marking holes. Shovel, Bricks, Gravel, Wheelbarrow for mixing concrete, Water, Concrete, Trowel, Level, Warning signs. Protective surfacing according to ASTM F1292 for a fall height of 10’.
PARTS INCLUDED ARE:
- EFF5 – 2 green
- MFF5 – 4 green
- S130 – 10 blue, green, red, yellow, black or tan
- SH129 – 20
- C127 – 20 blue, green red or yellow
- H172 – 20
- H170 – 20
- Pipe Legs 10′ – 6
- Pipe Cross Beam 10′ – 5
- H175 – 1
